CNC Hardware
Control hardware that delivers on its promises: durable, powerful, and future-ready. A sleek and reliable partner by the side of your cutting machine.
Small and Compact – Yet so Powerful

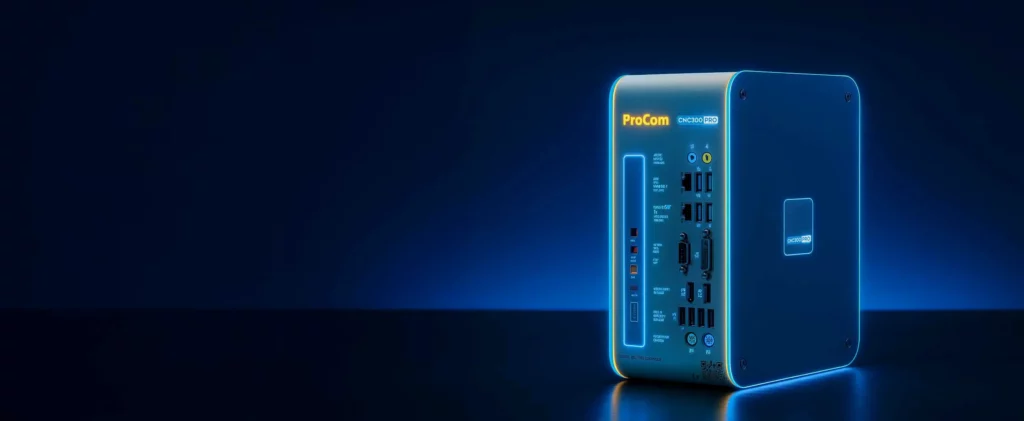

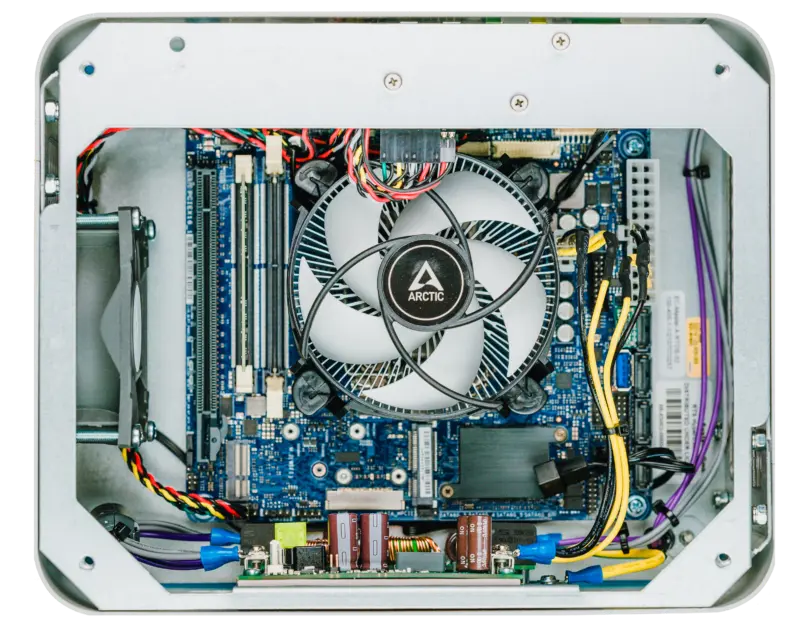

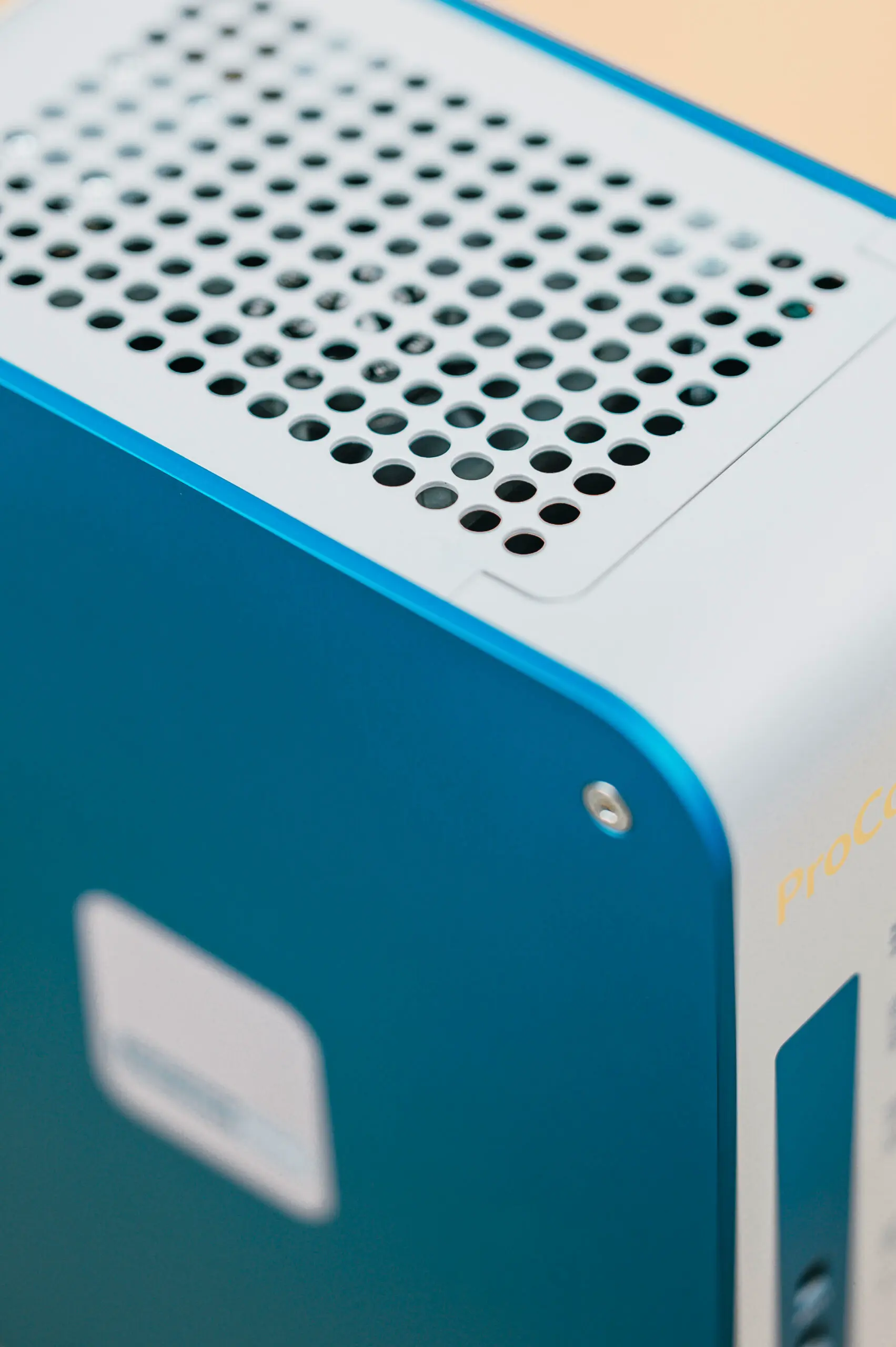

In addition to its modern design, the new generation CNC300PRO has been crafted to be as compact as possible. The space-saving design allows you the flexibility to decide where you want to install the control – without restrictions due to limited space. The interior is neatly and cleverly designed, with all components thoughtfully placed to ensure uninterrupted operation alongside your cutting machine.
Should maintenance be of need, you can rely on ProCom Automation’s first-class service and support!
Our CNC Hardware's Performance in Focus
Technical Details
Enclosure
Switching cabinet IPC
- Dimensions (WxHxD) with mounting bracket:
109 mm * 303 mm * 200.5 mm (without connectors) - Dimensions (WxHxD) without mounting bracket:
109 mm * 247.5 mm * 200 mm (without connectors)
- Dimensions (WxHxD) with mounting bracket:
Weight
Approx. 4 kg
Processor
Intel® Core™ i3, i5, or i7
RAM
8GB or 16GB
SSD Storage
128GB or 1TB
Operating System
Windows 10 IoT Enterprise LTSC
Interfaces
1x EtherCAT® interface
1x DVI-D
1x Serial COM1 port (RS232)
1x LAN (RJ-45, 10/100/1000 MBit/s)
1x PS/2 (Mouse), 1x PS/2 (Keyboard)
1x Audio with Line In/Line Out2x Display Port V1.2
2x USB 3.1 Gen.2
2x USB 3.1 Gen.14x USB 2.0
Power Supply
Electrical Connection 24V DC
Control and Usability
Remotely controllable and operable
Industry 4.0
Connection to the IIoT production monitoring platform Clouver
