Introduction

Overall Equipment Effectiveness (OEE) is one of the most important metrics in manufacturing. It combines availability, performance and quality into a single figure that clearly shows how efficiently a production line is truly operating. Production and plant managers use OEE to make productivity and hidden losses visible – from machine downtimes to speed losses. In this article, you will learn in a practical way how to calculate the OEE metric, avoid common mistakes, and improve your plant performance with concrete measures and software support.

A strong OEE value brings tangible benefits: higher utilisation, lower costs and more output with the same resources. The following guide is aimed at production and plant managers as well as management and shows step by step how OEE works, what benchmarks are typical in your industry, which pitfalls exist and how you can sustainably increase the effectiveness of your production using proven best practices and digital tools (e.g. Clouver).





OEE Formula and Key Figures

OEE (Overall Equipment Effectiveness) is defined as the product of availability, performance and quality.

In other words:

OEE = Availability × Performance × Quality.

Three pillars side by side: Availability at 90%, Performance at 85%, and Quality at 95%. Below, the calculation: OEE = 90% × 85% × 95% = 72.6%.

These three factors cover the main sources of losses in manufacturing. An OEE of 100% would correspond to perfect production without downtime, at maximum speed and zero scrap – a theoretical ideal that is unachievable in practice. Realistic OEE values are usually significantly lower. Below are the three OEE factors and how they are calculated:

  • Availability:

    Ratio of actual run time to planned production time. This includes all planned and unplanned downtimes. Formula: Availability = (Operating Time ÷ Planned Time) × 100%. A value of e.g. 80% means that 20% of the scheduled time was lost due to maintenance, faults or changeovers.



  • Performance:

    Indicates how close the production speed is to the maximum possible when the equipment is running. Formula: Performance = (Actual Output ÷ Target Output) × 100%, where Target Output is based on the ideal cycle time. If this value is below 100%, speed losses occurred due to minor stops, suboptimal processes or reduced cycle rates.



  • Quality:

    Proportion of good parts in the total quantity. Formula: Quality = (Good Parts ÷ Total Parts) × 100%. A value of e.g. 95% means that 5% scrap or rework occurred. This factor addresses quality losses – only a part that passed the first time is counted as a good part.



These factors allow the OEE metric to be fully determined. It is important to record the factors consistently and correctly: All relevant downtimes must be considered, the ideal cycle time must be chosen realistically and defective parts must be accurately captured. Only with high-quality production data can OEE be reliably calculated.





1% OEE Improvement – What Does It Mean in Hours and Euros?

OEE is not just an abstract percentage. Every improvement has a concrete impact on your available production hours and output (and thus on revenue). Let’s do the maths:

Assume your equipment has 6,000 production hours per year (equivalent to around 250 days × 24 hours or about 3 shifts on 250 days). At an OEE of 60%, 3,600 of those hours are used for value-adding production. +1% OEE means 61% of 6,000 hours are productive – that’s 60 more hours. That may not sound like much. But consider: 60 additional operating hours can – depending on the industry – mean a significant amount of output.

Take plastics processing as an example: In 60 hours of extruder operation, you can process a large amount of granulate and produce products. If your equipment output is €300 per hour in marketable products, then 60 hours correspond to about €18,000 of additional value creation potential. And that’s per machine. If you have ten similar machines, we are already talking about €180,000 annually.

An illustration poses the question: “What does +1% OEE achieve?” Beneath it, a vertical bar chart compares two production years. The first bar represents Production Year One with an OEE of 60%, while the second bar shows Production Year Two with 61%. To the right of the chart, icons highlight the effects of this 1% improvement: a clock symbol indicates an additional 60 hours, a factory icon represents 1,000 extra units produced, and a euro symbol stands for a gain of €18,000.

Of course, these figures are simplified sample calculations. In some industries (e.g. food), the value added per hour is lower, in others (e.g. pharma or automotive suppliers) significantly higher. But the basic principle applies everywhere: Every percentage point of OEE counts. It represents machine time that you regain – whether through less downtime, faster production or less scrap. And regained machine time means increased production quantity.

To make the potential tangible, it’s worth doing such calculations individually for your business. Ask yourself: How much does my equipment produce per hour in value terms? Then you can calculate what e.g. a 5% OEE improvement over the year would bring. The results are often motivating – suddenly “efficiency” is not just an abstract good but clearly expressed in €.





OEE Benchmarks by Industry

What is considered a “good” OEE value?

Generally, the following rules of thumb apply: OEE over 85% is considered excellent and indicates very efficient production. Values between 60–85% are moderate to good, but still show room for improvement. Below 60%, OEE is considered low, which indicates significant losses and immediate need for action.

However, achievable OEE values depend heavily on the industry and process. Highly automated sectors like automotive often reach higher OEE, while, for example, food production tends to have somewhat lower average values.



Here is an overview of typical OEE benchmarks by industry:

Industry-specific OEE average values and world-class benchmarks:

Horizontal bar chart titled “OEE Benchmarks by Industry”. From top to bottom: Automotive, Food, Chemicals, Plastics. Each bar displays the industry average and the world-class OEE benchmark.

Note: “World-class” refers to best-in-class companies in the respective industry. Modern cloud-based systems in manufacturing today enable even higher OEE yields through real-time data collection and intelligent optimisation. However, for most companies, values above ~85% are already excellent, while anything below 60% clearly indicates improvement potential. Use these benchmarks as a guide, but always in relation to your specific processes and production conditions.





Common Mistakes in OEE Calculation

When introducing the OEE metric, errors often creep in in practice that reduce the significance of the value. Here are the five most common mistakes in OEE calculation – and how to avoid them:

  1. Unrealistic ideal cycle time:

    If the target performance uses a cycle time that is far too optimistic or manufacturer-provided, a falsely high performance factor results. Tip: Determine the fastest realistically achievable cycle time under actual conditions as a reference value instead of blindly using manufacturer specifications.



  2. Ignoring planned downtimes:

    Setup times, maintenance or breaks are often handled incorrectly. If planned stops are not deducted from the outset, availability appears worse than it is – or conversely, important loss times are missing. Tip: Clearly define which downtimes are “planned” (e.g. scheduled maintenance, shift changes) and subtract them from the schedulable production time. This ensures consistent availability calculation.



  3. Manual data entry:

    If OEE is recorded manually on paper or in Excel, data entry errors can easily occur. Micro-stoppages (brief interruptions under e.g. 1 minute) are also often lost. Tip: Use digital data capture directly at the machines. Automated systems record even the smallest stops and quantities produced accurately, making the calculation much more precise.



  4. Counting reworked parts as good:

    Parts that only meet quality standards after rework are often wrongly booked as “good”. This beautifies the quality factor and conceals real problems. Tip: Only count parts that pass on the first run as good parts (First Pass Yield) and count reworked pieces as defective. This gives the quality factor a more realistic reflection.



  5. Misusing OEE as an employee KPI:

    When OEE is used to evaluate individual employee performance, it can lead to resistance or even manipulation. For example, operators may be tempted not to report problems to keep the figure high. Tip: Use OEE as a team and improvement metric, not for rewarding or penalising individuals. Communicate openly that OEE serves to optimise processes together – then everyone pulls in the same direction.



By avoiding these mistakes, you ensure that the OEE metric is a reliable gauge of your production’s performance. A solid data foundation and correct calculation build trust in the results and acceptance among all stakeholders.





Tool Comparison: Which OEE Software is Right for You?

Pen and paper or Excel spreadsheets may suffice for initial OEE calculations. But to continuously and in real time monitor OEE, many end up using specialised software. Below, we compare three example solutions – from fast cloud entry to comprehensive MES platforms. This way, you can find the right tool depending on your company size and needs:

A table showing a tool comparison. The OEE tool, for which it is suitable and the strengths and special features are presented. The tools Clouver from ProCom Automation, smartOEE from Fastec and Symestic from Cloud-MES are compared.

Note: If you have previously collected OEE data manually (e.g. in Excel), pay attention to data import functions when choosing software. Some tools (such as Clouver or Symestic) allow historical data to be imported – so your old records are not lost, and you can start with trend analysis right away. Other solutions (especially pure cloud entry products) focus on real-time from implementation – in these cases, you start “from scratch” with data collection.

Of course, there are more OEE tools on the market – from specialised industry solutions (e.g. for injection moulding or pharma) to low-cost approaches that integrate OEE functions into machine controls. It’s important to choose a system that fits your IT environment and team. A complex MES is only worthwhile if you can turn the data gained into decisions; a simple cloud solution plays to its strengths if you want to start quickly and see initial success.





Practical Examples and Tips for OEE Optimisation

An OEE metric is only as useful as the improvements you derive from it. Here are some proven methods to increase OEE in practice, supported with concrete approaches:

  • Increase availability:
    Focus on minimising unplanned outages. Preventive maintenance instead of reactive repairs helps reduce downtimes from the outset. Faster changeover processes also increase available run time – keyword SMED (Single Minute Exchange of Die) for rapid changeovers. Practical tip: In one plant, a structured maintenance programme reduced downtime due to faults by about 30%, which increased the availability OEE accordingly.



  • Optimise performance:
    Analyse small interruptions and speed losses. Micro-stoppages (e.g. short sensor stops or blockages) add up and reduce the performance factor. Identifying and eliminating these (e.g. through process optimisation or better equipment tuning) pays off. Staff should also be regularly trained to operate machines optimally and avoid performance fluctuations. Example: A manufacturer found that frequent 30-second stops on a conveyor belt significantly reduced output. After improvements to the sensor system and operator training, the line’s performance factor rose noticeably.



  • Improve quality:
    Quality loss is a double loss – material and time. Use methods such as Poka Yoke (built-in error prevention) and Statistical Process Control (SPC) to prevent errors from occurring in the first place. Also, raise awareness of First Pass Yield: Only defect-free products on the first attempt count. Practical tip: Introducing simple Poka Yoke devices on an assembly line reduced the rejection rate by 20%. This directly improved the OEE quality factor, as less rework was required.



  • Ensure data quality:
    Without accurate data, any OEE calculation is questionable. Therefore, automate data collection – manual records take time and are error-prone. Modern MES and IIoT systems (as described above) provide minute-accurate, consistent data on downtimes, cycle times and output. Use real-time dashboards to receive immediate feedback when performance drops or a fault occurs. Also, standardise the recording of downtime reasons (a code system for fault causes) to enable targeted analysis. This ensures that optimisations are based on sound facts.



  • Involve the team:
    OEE improvement is not a one-time project, but a continuous improvement process. Therefore, actively involve your team. Establish regular shop floor meetings where OEE figures and losses are discussed openly. Line staff often have valuable insights into where time is being lost. Foster a culture of continuous improvement (CIP), where everyone can contribute suggestions. Practical tip: Some companies use OEE boards in production, where current OEE values are visible to everyone. This level of transparency motivates the team – a healthy sense of competition emerged between shifts over who could achieve the better OEE. Important: the common goal is optimisation, not rivalry.



These measures can gradually increase overall equipment effectiveness. Often, small improvements bring big effects: An increase in OEE by just 5–10 percentage points can free up hundreds of additional production hours per year.





Conclusion

Calculating the OEE metric is the first step – its full potential is realised when continuous improvements are derived from it. OEE provides production managers and management with a clear, quantifiable view of losses in availability, performance and quality. With this knowledge, you can specifically address the greatest weaknesses. It’s important to measure OEE correctly (avoid pitfalls!) and involve the workforce so that the metric is accepted as a common benchmark.

Those who continuously improve their production equipment using OEE not only increase productivity and quality but also secure the company’s long-term competitiveness. Modern digital tools help in this: From MES systems to IIoT platforms like Clouver – they provide the real-time transparency needed to immediately identify and counteract losses. Use these opportunities and proactively approach OEE optimisation. Every step forward in OEE means less waste, more output and a more efficient use of your resources. Start now by implementing the best practices presented here – your machine performance and your team will thank you!

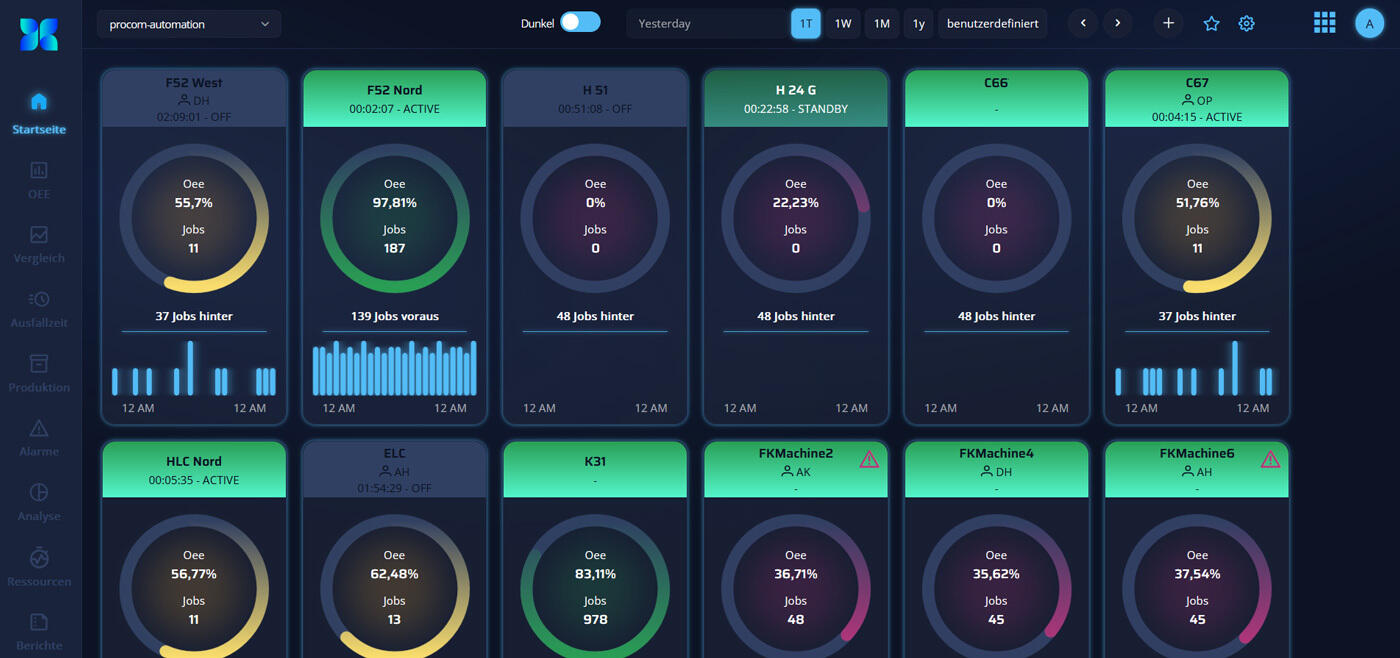

Clouver Dashboard mit OEE Anzeige
Sample Clouver dashboard showing OEE

What is your OEE?
